What is a Thermowell? Different Types of Thermowells & their applications?
Table of Contents
Introduction
A thermowell is an important component in temperature measurement systems. It protects temperature sensors, such as thermocouples or RTDs (Resistance Temperature Detectors), from harsh environmental conditions, mechanical damage, and process media like gases or liquids. Thermowells ensure that temperature readings are accurate while extending the life of sensors, especially in demanding industrial environments.
In this blog, we will explore what a thermowell is, the different types of thermowells, and their applications in various industries.
1. What is a Thermowell?
A thermowell is a cylindrical, hollow tube made from materials like stainless steel, brass, or other corrosion-resistant metals. It is installed in pipes, vessels, or tanks to shield temperature sensors from direct exposure to the process medium. The thermowell isolates the sensor from high pressure, corrosive chemicals, and mechanical forces, allowing for accurate and safe temperature measurement.
Without a thermowell, the sensor could wear out quickly or fail due to exposure to the process medium. Thermowells are commonly used in industries such as oil and gas, petrochemicals, power generation, and food processing.
Key Components of a Thermowell:
- Stem (or Shank): The main part of the thermowell inserted into the process.
- Process Connection: The portion that connects to the vessel or pipe.
- Instrument Connection: The part where the temperature sensor is mounted.
- Bore: The hollow part inside the thermowell that holds the sensor.
2. Importance of Thermowells in Temperature Measurement
Thermowells play a vital role in:
- Protecting Sensors: By acting as a protective shield, they prevent wear, corrosion, and damage caused by high pressures, high temperatures, and aggressive chemicals.
- Accurate Measurements: Thermowells help avoid contamination of the sensor by isolating it from the process medium, which ensures reliable readings.
- Extended Sensor Life: Sensors can be removed and replaced without disturbing the process, reducing downtime and maintenance costs.

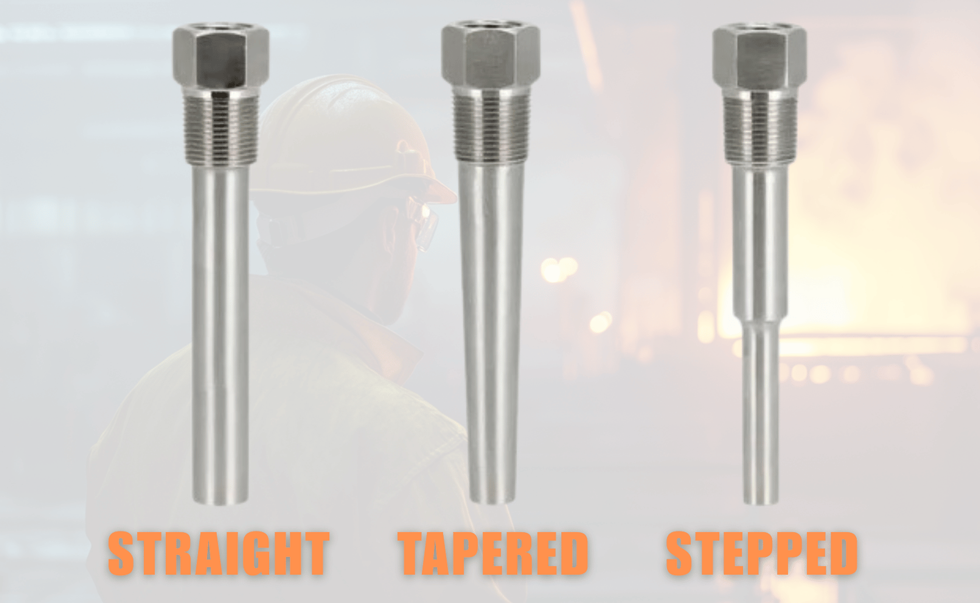

3. Types of Thermowells
There are several types of thermowells, each designed for specific applications. These types include:
3.1 Tapered Thermowells
Tapered thermowells have a stem that narrows or tapers as it goes deeper into the process medium. The tapered design offers strength, especially under high pressure, and reduces drag forces caused by fluid flow.
Material: Typically, stainless steel or high-nickel alloys.
Applications: These are often used in high-velocity fluid or gas streams, where they resist bending or breaking. Commonly found in power plants and chemical processing industries.
Type | Advantages | Applications |
Tapered Thermowells | High strength, low drag | High-velocity fluids, power plants, chemical plants |
3.2 Straight Thermowells
Straight thermowells have a uniform diameter along their entire length. They offer moderate strength and are simpler in design compared to tapered thermowells.
Material: Typically, stainless steel, brass, or Inconel.
Applications: Used in lower-pressure environments or where the process fluid has slower flow rates. These are ideal for HVAC systems, water treatment plants, and food processing industries.
Type | Advantages | Applications |
Straight Thermowells | Simpler design, moderate strength | HVAC systems, water treatment, food processing |
3.3. Stepped Thermowells
Stepped thermowells have a stem that decreases in diameter at a specific point, creating a “step.” This design reduces the overall mass of the thermowell, improving response time while still maintaining a level of strength.
Material: Stainless steel, brass, or carbon steel.
Applications: Common in applications requiring faster sensor response times, such as steam systems and gas pipelines.
Type | Advantages | Applications |
Stepped Thermowells | Fast response, good strength | Steam systems, gas pipelines |
4. Applications of Thermowells
Thermowells are used in a wide range of industries and applications due to their ability to protect sensors and ensure accurate temperature measurement.
4.1 Oil & Gas Industry
In the oil and gas industry, thermowells are critical for ensuring safety and accuracy in temperature measurements in high-pressure environments. They are used in pipelines, refineries, and drilling rigs to monitor the temperature of oil, gas, and other chemicals.
Applications: Gas processing plants, oil pipelines, and offshore drilling platforms.
Types of Thermowells Used: Tapered thermowells are most commonly used in these applications due to their strength and ability to withstand high pressures.
4.2 Chemical & Petrochemical Industry
Chemical and petrochemical plants often deal with highly corrosive chemicals and extreme temperatures. Thermowells are used to protect sensors in reactors, storage tanks, and processing units, ensuring that the sensors are not exposed to corrosive media.
Applications: Reactors, chemical mixing tanks, and distillation columns.
Types of Thermowells Used: Corrosion-resistant materials, such as Inconel and Hastelloy, are preferred for thermowells in this industry.
4.3 Power Generation
Thermowells are widely used in power plants for monitoring steam and coolant temperatures. They are crucial for maintaining the efficiency and safety of turbines, boilers, and heat exchangers.
Applications: Steam turbines, boilers, and cooling towers.
Types of Thermowells Used: Stepped thermowells are often used in power plants for their fast response times.
4.4 Food & Beverage Industry
In the food and beverage industry, hygiene is critical. Thermowells are used to monitor temperatures during cooking, pasteurization, and fermentation processes. Food-grade materials, such as stainless steel, are used for thermowells in these applications.
Applications: Pasteurizers, brewing kettles, and sterilization units.
Types of Thermowells Used: Straight thermowells are commonly used due to their simplicity and effectiveness in low-pressure environments.
4.5 HVAC Systems
Thermowells are used in HVAC (Heating, Ventilation, and Air Conditioning) systems to measure air and water temperatures. These systems often operate under moderate conditions, making straight thermowells a suitable choice.
Applications: Air conditioning units, boilers, and chillers.
Types of Thermowells Used: Straight thermowells for air and water temperature monitoring.
4.6 Pharmaceutical Industry
In pharmaceutical manufacturing, temperature control is vital for the consistency and safety of products. Thermowells protect temperature sensors in sterilization chambers, reactors, and other temperature-sensitive processes.
Applications: Sterilizers, reactors, and storage tanks.
Types of Thermowells Used: Sanitary thermowells made from corrosion-resistant stainless steel are preferred.
5. Factors to Consider When Choosing a Thermowell
When selecting a thermowell, several factors must be considered to ensure optimal performance and durability:
5.1 Material
The material of the thermowell must be compatible with the process medium. For example, stainless steel is used in corrosive environments, while brass is suitable for non-corrosive applications.
5.2 Process Conditions
Consider the temperature, pressure, and flow rate of the process medium. High-pressure applications may require tapered thermowells, while low-pressure systems may use straight thermowells.
5.3 Response Time
Different types of thermowells have varying response times. Stepped thermowells generally offer faster response times, making them ideal for applications where quick temperature readings are required.
5.4 Installation Method
Thermowells can be installed using threaded, flanged, or welded connections, depending on the requirements of the application.
6. Thermowell Failure and Its Causes
Although thermowells are designed to protect sensors, they can fail due to several factors:
6.1 Corrosion: Continuous exposure to corrosive media can weaken the thermowell over time.
6.2 Fatigue: Repeated exposure to mechanical stress or fluid vibrations can lead to material fatigue.
6.3 Improper Installation: Incorrect installation, such as poor alignment or overtightening, can cause cracks or fractures in the thermowell.
Regular inspection and maintenance of thermowells are important to prevent failure and ensure accurate temperature measurement.
7. Conclusion
Thermowells are important in protecting temperature sensors in various industrial applications. They ensure that sensors can withstand harsh environmental conditions, extend sensor lifespan, and provide accurate readings. With different types of thermowells available, selecting the right one depends on the specific application, process conditions, and material compatibility.
Understanding the types and applications of thermowells allows industries to optimize their temperature measurement systems and enhance operational efficiency.
